The instructions provided in this guide are intended as general setup guidance for configuring the SIM-PANEL FLIGHTMATE controller with Microsoft Flight Simulator.
Microsoft Flight Simulator is periodically updated by its developer. Therefore, control names, menu layouts, and mapping procedures may change over time. As a result, some functions referenced in this guide may appear slightly different in your version of the simulator.
If you encounter differences between the instructions shown here and the options available in your simulator, please consult the built-in Microsoft Flight Simulator help documentation or online resources for the most current information regarding control assignments.
This guide is provided for instructional purposes only and reflects the simulator configuration and terminology available at the time of publication.

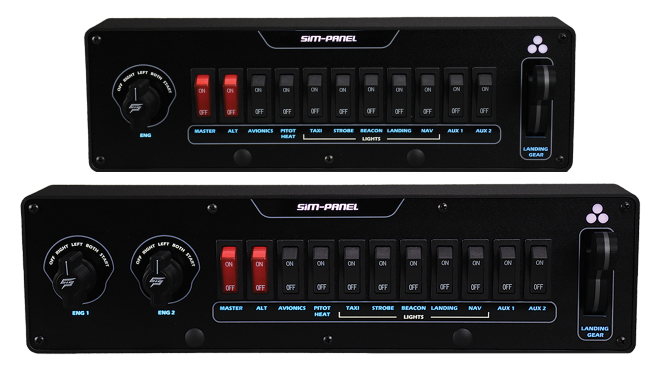

FLIGHTMATE MAG (ENG) switch mapping differs depending on whether your panel includes a single MAG switch or dual MAG switches.
The Single-MAG version is intended for single-engine aircraft. The Dual-MAG version provides separate MAG and START controls
for Engine 1 and Engine 2 in multi-engine aircraft.
When flying single-engine aircraft with the Dual-MAG version, simply follow the MAG 1 setup instructions.
Mapping MAG switches in Microsoft Flight Simulator can be confusing because MSFS detects switch movement rather than static positions. Carefully follow the instructions below to correctly assign each MAG position.
Select the panel variant that matches your hardware:
| To MAP... | Start With Switch In | Select This MSFS Function | Then Move Switch To | Purpose |
|---|---|---|---|---|
| OFF | RIGHT | Magnetos Off | OFF | Turns ignition completely off |
| RIGHT | OFF | Magnetos Right | RIGHT | Right magneto only |
| LEFT | RIGHT | Magnetos Left | LEFT | Left magneto only |
| BOTH | LEFT | Magnetos Both | BOTH | Normal engine operation |
| START | BOTH | Magnetos Start | START | Engages starter motor |
Note: MSFS may label controls slightly differently depending on aircraft or simulator version. Search for functions containing Magneto.
After completing the MAG switch setup, map the remaining FLIGHTMATE toggle switches to the corresponding functions in Microsoft Flight Simulator.
IMPORTANT! Begin by ensuring ALL controls are in the OFF position!
During assignment, cycle the physical switch ON/OFF so MSFS detects the input. For best results, remove any conflicting default assignments first.
| FLIGHTMATE Switch | Recommended MSFS Function | Switch Position Used During Mapping | Purpose |
|---|---|---|---|
| MASTER | Set Master Battery | Cycle switch ON/OFF | Controls aircraft master battery |
| ALT | Set Alternator | Cycle switch ON/OFF | Controls aircraft alternator |
| AVIONICS | Set Avionics Master | Cycle switch ON/OFF | Powers avionics systems |
| PITOT HEAT | Set Pitot Heat | Cycle switch ON/OFF | Activates pitot tube heating |
| TAXI | Set Taxi Light | Cycle switch ON/OFF | Controls taxi lighting |
| STROBE | Set Strobes | Cycle switch ON/OFF | Controls aircraft strobe lights |
| BEACON | Set Beacon Lights | Cycle switch ON/OFF | Controls rotating beacon |
| LANDING | Set Landing Lights | Cycle switch ON/OFF | Controls landing lights |
| NAV | Set Nav Lights | Cycle switch ON/OFF | Controls navigation lights |
| AUX 1 | User Assignable | Cycle switch ON/OFF | Assignable to any simulator function |
| AUX 2 | User Assignable | Cycle switch ON/OFF | Assignable to any simulator function |
The FLIGHTMATE landing gear lever is a two-position control used to raise and lower the aircraft landing gear. During assignment in Microsoft Flight Simulator, the simulator will detect the lever movement when it is moved between the DOWN and UP positions.
| Lever Position | Start With Lever In | Select This MSFS Function | Then Move Lever To | Purpose |
|---|---|---|---|---|
| GEAR DOWN | UP | Landing Gear Down | DOWN | Extends aircraft landing gear |
| GEAR UP | DOWN | Landing Gear Up | UP | Retracts aircraft landing gear |
Note: Some aircraft may use the functions labeled Toggle Landing Gear, Landing Gear Up, or Landing Gear Down. For best results, assign the specific Landing Gear Up and Landing Gear Down functions separately. Aircraft with fixed landing gear will not respond to these controls.
The setup instructions provided in this guide are specific to Microsoft Flight Simulator. While your SIM-PANEL FLIGHTMATE controller is compatible with many other flight simulation platforms, the control mapping process may differ depending on the simulator being used.
If you are using FLIGHTMATE with another simulator such as X-Plane, Prepar3D, DCS, or other flight simulation software, please refer to the documentation or help resources provided by that simulator for instructions on how to assign external hardware controls.
Most simulators provide a device configuration or control mapping section where each FLIGHTMATE switch, MAG control, or lever can be assigned to the desired simulator function.
Note: Because each simulation platform uses different terminology and control assignment methods, SIM-PANEL cannot provide universal mapping instructions for all simulators.
This Limited Warranty is valid toward the original purchaser only and applies to physical goods, and only for physical goods, purchased from Appcentrix LLC under the tradename SIM-PANEL (the "Physical Goods").
What does this limited warranty cover?
This Limited Warranty covers any defects in material or workmanship under normal use during the Warranty Period.
During the Warranty Period, Appcentrix LLC will repair or replace, at no charge, products or parts of a product that proves defective because of improper material or workmanship, under normal use and maintenance.
What will we do to correct problems?
Appcentrix LLC will either:
How long does the coverage last?
The Warranty Period for Physical Goods purchased from Appcentrix LLC is ONE YEAR from the date of purchase.
A replacement Physical Good or part assumes the remaining warranty of the original Physical Good or 30 Days from the date of replacement or repair, whichever is longer.
What does this limited warranty not cover?
This Limited Warranty does not cover any problem that is caused by:
Who pays for shipping?
Initial return shipping costs and charges are to be pre-paid by the customer. If deemed warrantable, Appcentrix LLC will gladly reimburse the customer for all applicable return shipping charges.
Appcentrix LLC shall not assume any risk of loss or damage to the Physical Good while in transit to us.
This Limited Warranty is void if the Physical Goods are returned with removed, damaged or tampered labels or any alterations.
What do you have to do?
To obtain warranty service, you must first contact us to determine the problem and the most appropriate solution for you.
Deliver the Physical Goods, in either its original packaging or in a package that provides an equal degree of protection, including any accessories or documents that shipped with the Physical Goods to the address specified by Appcentrix LLC.
You can contact us by any of the following contact methods:
Implied Warranties
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES (INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) SHALL BE LIMITED IN DURATION TO THE DURATION OF THIS LIMITED WARRANTY.
Limitation of Damages
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, APPCENTRIX LLC SHALL NOT BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF EXPRESS OR IMPLIED WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY.
Consumer Protection
Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary by state to state.
Governing Law
This Limited Warranty shall be governed by the laws of Florida, United States without giving effect to any conflict of laws principles that may provide the application of the law of another jurisdiction.
